CO detectors
CMD, CMB and CMS-series

The carbon monoxide detector is used for the detection of carbon monoxide (CO) within a wide range of commercial applications such as vehicle exhaust in parking structures (e.g. underground garages), engine repair shops, tunnels, equipment rooms and ventilation systems etc.

CMD-series = IP65
CMB-series = IP65, duct
CMS-series = IP55, stainless steel

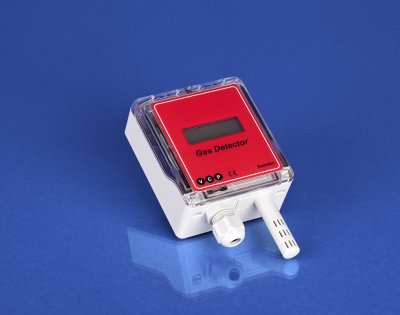

The CMD-series carbon monoxide detector
for wall mounting

The CMB-series carbon monoxide detector
for duct is supplied with a Duct Mounting Set.

The CMS-series carbon monoxide detector
with stainless steel enclosure is designed with a practical snap closing without screwing.

To avoid unauthorized opening,
the CMS enclosure can only be opened by
opening tool TL1 SSE

Output (0)2-10 Vdc or (0)4-20 mA, jumper selectable

Electrochemical sensor element

Positoning stable

Sensor life time expectancy 5 years,
in normal operation enviroment

Supply voltage range 18-28 Vac/dc

Wide selection of ppm ranges:

  • 0-50 ppm
  • 0-100 ppm
  • 0-150 ppm
  • 0-200 ppm
  • 0-300 ppm
  • 0-400 ppm
  • 0-500 ppm
  • 0-1000 ppm
  • 0-2000 ppm

Options for carbon monoxide detectors
CMD, CMB and CMS-series:

  • Relay Pack (2 alarm relays)
  • Buzzer/Siren (built-in, in front of cover)
  • *LCD display (built-in, in front of cover)
  • *LED indicator (built-in, in front of cover)
  • Heating
  • RS-485 Modbus

    • * Not possible with CMS enlosure

Click for more information about these products

Side Warning Devices /
External Devices

  • Flash Light (external)
  • Buzzer/Siren (external)
  • Flash Light and Buzzer/Siren (external)
  • Side warning devices can be used with
    CO detectors CMD, CMB and CMS
    when the option relay pack (2 alarm relays)
    RP2 is added

Click for more information about these products

CO detectors
CMF, CMX, CMA, CMK and CMR-series

The carbon monoxide detector 4-20 mA / 2- 10 Vdc output is used for the continuous monitoring of the ambient air to detect the presence of carbon monoxide (CO) gas concentrations within the ambient conditions defined in the specifications.

Main application ranges are underground car parks, tunnels, engine test stations, shelters, loading areas etc.

IP protections:
CMF-series = IP44
CMX-series = IP54
CMA-series = IP65
CMK-series = IP65, duct
CMR-series = IP55, stainless steel

Electrochemical sensor element

Positoning stable

Sensor life time expectancy 5 years,
in normal operation enviroment

Supply voltage range 18-28 Vac/dc

Wide selection of ppm ranges:

  • 0-50 ppm
  • 0-100 ppm
  • 0-150 ppm
  • 0-200 ppm
  • 0-300 ppm
  • 0-400 ppm
  • 0-500 ppm
  • 0-1000 ppm

Click for more information about these products
